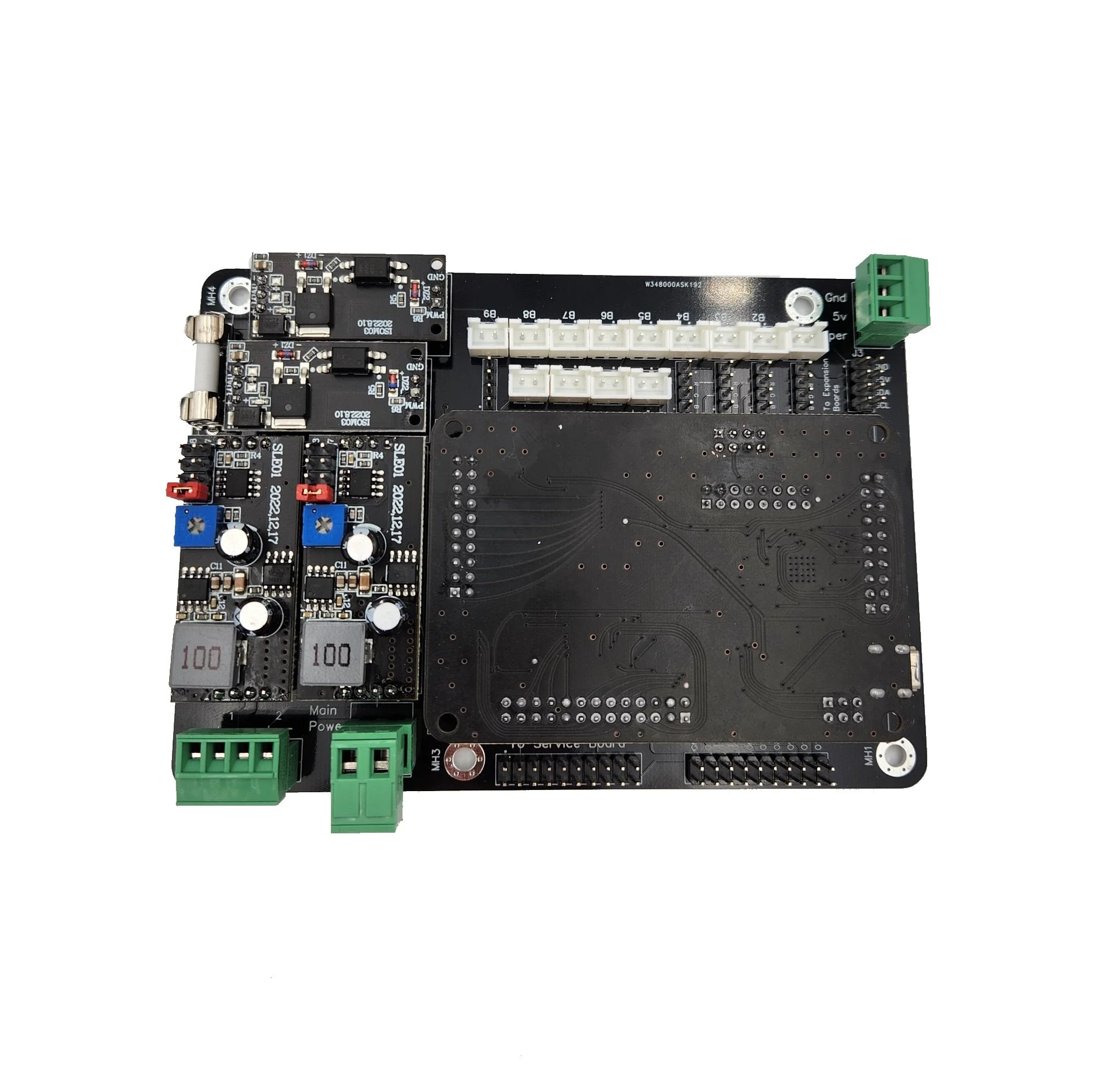

PinOne Mini Virtual Pinball Connection Board
With this board, you will be able to use your PinOne board to use inside of most smaller pinball machines. This board provides easy access to connect the following:
9 button inputs (Uses JST-XH connectors, not included, but sold here)
Powered outputs for 5 RGB lights and 4 single color LEDs (5V 25mA current outputs, current limited, so no risk of shorting any output out)
Plunger input for a potentiometer based plunger assembly
12V High power input connection to run 2 solenoids
2 high power mosfets and solenoid life extender boards to run solenoids
Expansion board slot for running CSD expansion boards for adding a light bar or additional outputs
Ability to add the CSD service board
Additional pinout that exposes all other outputs to the board for future expandability
Full analog nudge
This is truly a mini pinball experience in a small package. With the PinOne board, you can get all the benefits of flipper feedback, lighted buttons, a plunger and button inputs without having to configure DOF at all! But take the time to configure DOF and get even more out of your rig since it’s all 100% DOF compatible!
Dimensions: 136mm x 96mm
Button inputs use JST-XH terminals. If you purchase the buttons from me, they come with wires and terminals so you can plug them directly into the board.
Common button wiring:HERE
B1 = RGB Right Flipper
B2 = RGB Right Magna
B3 = RGB Left Flipper
B4 = RGB Left Magna
B5 = Extra Ball
B6 = Coin
B7 = Launch Ball
B8 = Start
B9 = RGB Fire
Note in the options below, the PinOne control board is needed for this to operate. If you get the Base Board only then you will need a PinOne control board to plug into the base board for it to work.
Read more about this board HERE
